Brand Name : Henger
Model Number : 003
Certification : CCS.ABS.LRS.BV.ISO.
Place of Origin : China
MOQ : 1
Payment Terms : L/C, D/A, D/P, T/TL/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 25 Pcs Per Week
Delivery Time : 15 Work Days
Packaging Details : Naked/Pallet
Product Name : EVA Foam Fender/Foam solid filled fender/Solid fender
Material : High Density Foam/Polyurea Coating
Specification : DIA 0.5m-4.5m, L 0.7m-9m/Customized
Certificate : CCS / BV / LR / ISO17357/DNV/SGS
Shelf Life : 24 Months
Service Life : 10-15 Years
Application : Dock,Ship,Ship to ship
Production time : 5-10 days
Accessories : Tyre Sheath/Swivel/Shackle/Chain
Color : Orange/Gray/Black/Customized
Light Weight High Elasticity EVA Foam Filled Fender Custom Size 24 Months Warranty
Foam filled fender, also called EVA solid fender, is a new type fender using light weight high elasticity foam as cushion medium, widely applied to harbour,offshore,STS and STD operation.
Henger Foam Filled Fender is made of environmental protection material and high elasticity polymeric material. Long service life and high economic value of this product is achieved by the high quality material with performance of high strength, high elasticity, high adhesion, anti-leakage,and aging
resistance.

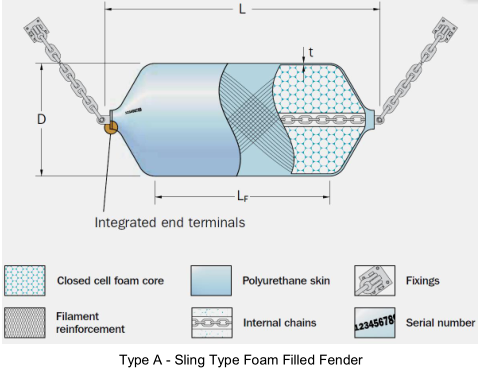

1. Without sheath-Type A - Sling Type Foam Filled Fender
2. The drawings are as follows

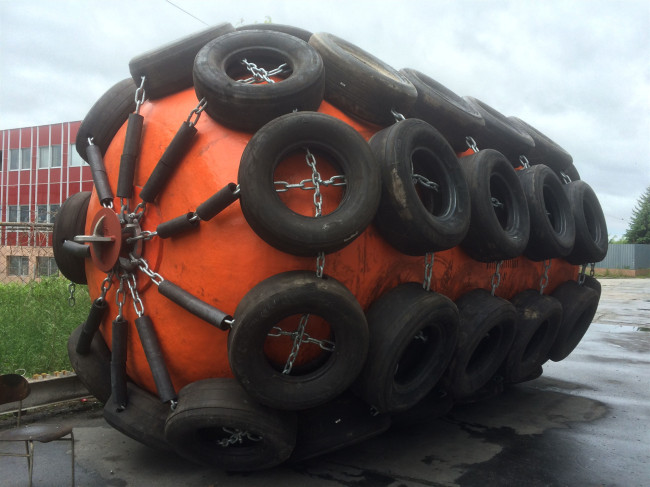

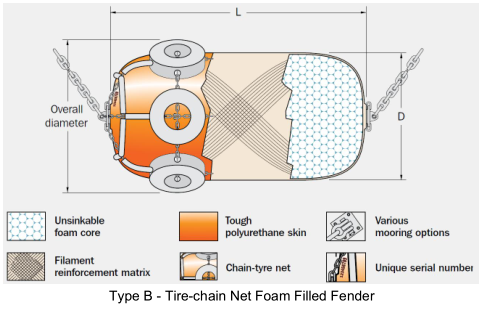

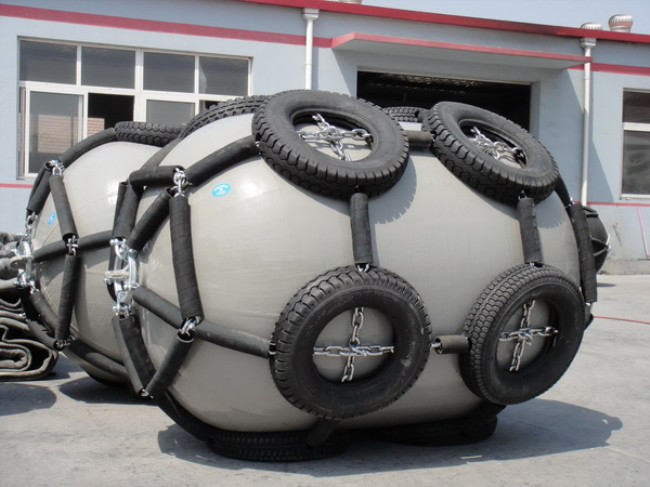

3. Type B - Tire-chain Net Foam Filled Fender
4.The drawings are as follows
5. Parameters Table
Model | D (mm) | L (mm) | compressibility 60% | Weight (kg) | |
counter-force (KN) | Energy Absorption (KJ) | ||||
Ø 500×1000L | 500 | 1000 | 71 | 8 | 34 |
Ø 600×1000L | 600 | 1000 | 86 | 12 | 45 |
Ø 700×1500L | 700 | 1500 | 161 | 27 | 101 |
Ø 1000×1500L | 1000 | 1500 | 205 | 49 | 206 |
Ø 1000×2000L | 1000 | 2000 | 274 | 64 | 275 |
Ø 1200×2000L | 1200 | 2000 | 337 | 93 | 405 |
Ø 1200×2400L | 1200 | 2400 | 390 | 110 | 475 |
Ø 1350×2500L | 1350 | 2500 | 463 | 145 | 626 |
Ø 1500×3000L | 1500 | 3000 | 624 | 216 | 927 |
Ø 1700×3000L | 1700 | 3000 | 696 | 273 | 1191 |
Ø 2000×3500L | 2000 | 3500 | 990 | 456 | 1923 |
Ø 2000×4000L | 2000 | 4000 | 1110 | 505 | 2298 |
Ø 2200×4500L | 2200 | 4500 | 1396 | 679 | 2992 |
Ø 2500×4000L | 2500 | 4000 | 1386 | 781 | 3434 |
Ø 2500×5000L | 2500 | 5000 | 1750 | 985 | 4272 |
Ø 3000×5000L | 3000 | 5000 | 2050 | 1410 | 6411 |
Ø 3000×6000L | 3000 | 6000 | 2460 | 1695 | 7293 |
Ø 3300×6500L | 3300 | 6500 | 2950 | 2245 | 8335 |
Ø 4500×9000L | 4500 | 9000 | 19650 | 7860 | 21460 |
6. If you are interested or need, please feel free to contact me, Thank you for reading.
![]() |
