Solid foam filled fenders and portable yacht fenders and large dock EVA fenders
Foam-Filled Rubber Fender
The following factors should be considered in the selection of pneumatic fenders:
(1) Maximum energy absorption E;
(2) Reaction force;
(3) Distance requirements after berthing of two ships or the berthing distance from the ship to the dock, including the maximum distance and the minimum distance;
(4) The size of the ship;
(5) Factors such as wind waves and temperature changes in the actual use environment.
Foam-Filled Fenders Technical Parameter
| Model | D (mm) | L (mm) | compressibility 60% | Weight (kg) |
| counter-force (KN) | Energy Absorption (KJ) |
| Ø 500×1000L | 500 | 1000 | 71 | 8 | 34 |
| Ø 600×1000L | 600 | 1000 | 86 | 12 | 45 |
| Ø 700×1500L | 700 | 1500 | 161 | 27 | 101 |
| Ø 1000×1500L | 1000 | 1500 | 205 | 49 | 206 |
| Ø 1000×2000L | 1000 | 2000 | 274 | 64 | 275 |
| Ø 1200×2000L | 1200 | 2000 | 337 | 93 | 405 |
| Ø 1200×2400L | 1200 | 2400 | 390 | 110 | 475 |
| Ø 1350×2500L | 1350 | 2500 | 463 | 145 | 626 |
| Ø 1500×3000L | 1500 | 3000 | 624 | 216 | 927 |
| Ø 1700×3000L | 1700 | 3000 | 696 | 273 | 1191 |
| Ø 2000×3500L | 2000 | 3500 | 990 | 456 | 1923 |
| Ø 2000×4000L | 2000 | 4000 | 1110 | 505 | 2298 |
| Ø 2200×4500L | 2200 | 4500 | 1396 | 679 | 2992 |
| Ø 2500×4000L | 2500 | 4000 | 1386 | 781 | 3434 |
| Ø 2500×5000L | 2500 | 5000 | 1750 | 985 | 4272 |
| Ø 3000×5000L | 3000 | 5000 | 2050 | 1410 | 6411 |
| Ø 3000×6000L | 3000 | 6000 | 2460 | 1695 | 7293 |
| Ø 3300×6500L | 3300 | 6500 | 2950 | 2245 | 8335 |
| Ø 4500×9000L | 4500 | 9000 | 19650 | 7860 | 21460 |
Advantages of foam fender:
1. With floating performance, the installation position is not affected by tidal range
2. No need to check during use, no inflation, no fear of scratching, no fear of friction, resistance to sea water, acid and alkali, the service life is as long as 10-15 years, and it is maintenance-free
3. There is no danger of blasting, and it is safe
4. It has better energy absorption performance and lower reaction force performance. When the compression is 60%, the reaction force is obvious from small to large, and the energy absorption is extremely high.
5. Product specifications are manufactured according to needs, and the specifications are the largest among ship fenders
6. Various colors can be applied to the outer surface of the fender, the product is smooth and beautiful, and the mark is obvious
7. The chain is used for hanging, which is simple to install and easy to move. Free choice of chain, tire and net increases the service life of the fender
Foam fender application:

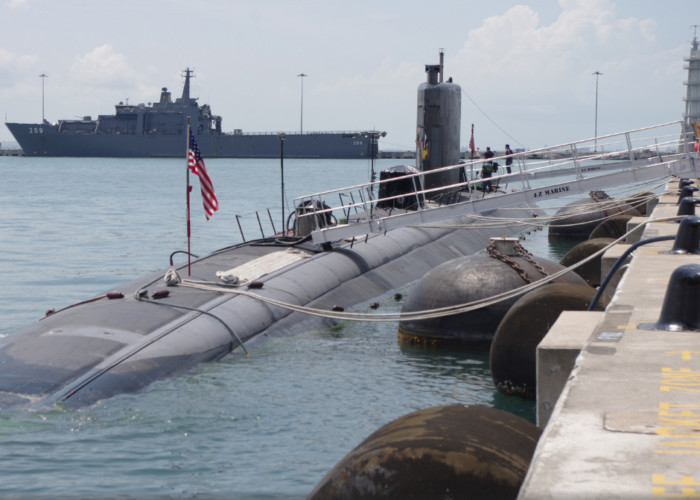

1. Installed on port wharfs and docks to protect ships from docking
2. Install on the ship's side
3. Water buoy
4. Moving goods
Foam-Filled Fenders Note:
1. In addition to the above, other sizes can also be customized.
2. Various colors can be customized.
3. Can choose a variety of different specifications or sheath
