80kPa Marine Boat Fenders Boat Rubber Fender Black Color With CCS Certificate

Name: 80kPa Marine Boat Fenders Boat Rubber Fender Black Color With CCS Certificate
Brand: Henger
Price: 50 USD

Buy cheap 80kPa Marine Boat Fenders Boat Rubber Fender Black Color With CCS Certificate product

Brand Name : Henger

Model Number : HE-HPF

Certification : CCS ABS LR BV TUV ISO

Place of Origin : China

MOQ : 1pc

Price : USD 50-3000 PER PIECE

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10pcs per week

Delivery Time : 5 working days

Packaging Details : nude/pallet

Product name : Pneumatic rubber fender,pvc inflatable fender

Material : Natural Rubber

Color : Black,blue,white

Size : As per customer's requirements

Packaging : Pallet/Box

Warranty : 2 years

Contact Now

Marine Rubber Fender 80kPa with CCS Certificate

1. Pneumatic Rubber Fender

Pneumatic rubber fender is one kind of ship berthing, cushioning and protection equipment, which uses compressed air as the buffer medium to prevent collision when the ship is berthing. These pneumatic rubber fenders play a vital role in the safe operation of ship berthing and mooring, and are widely used in the fields of ship, marine facility, marine platform, port and dock, yacht and so on.The pneumatic rubber fender is more economical and durable than the ordinary rubber fender, so it is more popular and widely used.

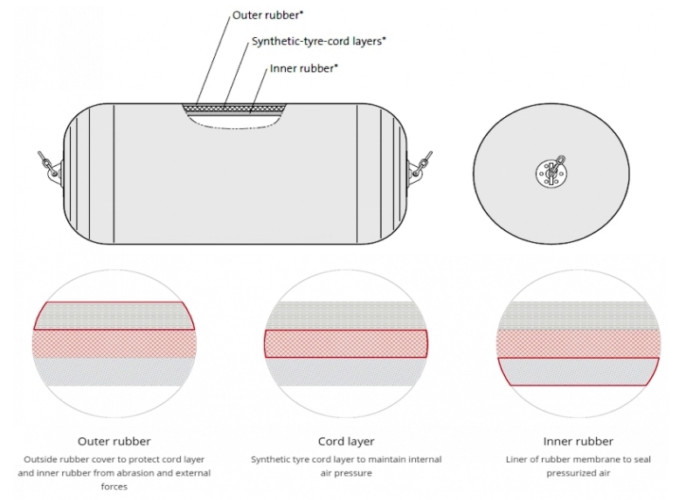

2. Unique Design of Henger Pneumatic Rubber Fender

Pneumatic 80 Kpa fender size and performance requirements

Fender Size		Compression Amount(60%)		Noumenon Weight (kg)	Weight with Protective Jacket (kg)
D (mm)	L (mm)	Reaction (KN)	Energy Absorption (KNM)	Noumenon Weight (kg)	Weight with Protective Jacket (kg)
500	1000	64	6	23	35
600	1000	74	8	28	40
700	1000	137	17	58	52
1000	1500	182	32	82	100
1000	2000	257	45	148	152
1200	2000	297	63	167	200
1350	2500	427	102	220	298
1500	2500	499	134	270	300
1500	3000	579	153	318	450
1700	3000	639	191	380	482
2000	3500	875	308	580	890
2000	4000	1000	352	680	1000
2500	4000	1381	663	1064	1180
2500	5500	2019	1131	1268	1380
3000	5000	2422	1357	1980	2388
3000	6000	2906	1293	2400	2690
3300	4500	1884	1175	2380	2617
3300	6500	3015	1814	2980	3000
There are pneumatic rubber fender of 0.05Mpa & 0.08Mpa internal pressure for choice, kindly contact our service consultant for more details and competitive prices. Pneumatic rubber fender size could be customized according to customer requirement. All accessories could be customized according to customers’ requirement or drawings.

Model Selection Of Pneumatic Rubber Fender For Small & Middle Size Ship

Ship Tonnage (T)	Recommendation Size D X L (m)	Ship Type
50	0.5 x 1.0	Fishing Ship
100	0.7 x 1.5 ~ 1.0 x 1.5	Fishing Ship
200	1.0 x 1.5 ~ 1.2 x 2.0	Fishing Ship, Towing Ship
300-500	1.2 x 2.0 ~ 1.5 x 2.5	Fishing Ship, Towing Ship
1000	1.5 x 2.5 ~ 1.5 x 3.0	Towing Ship, Cargo Ship
3000	2.0 x 3.0 ~ 2.0 x 3.5	Cargo Ship, Ocean Trawler
10000	2.0 x 3.5 ~ 2.5 x 4.0	Cargo Ship

Model Selection Of Pneumatic Rubber Fender For Large-tonnage Ship

Ship Tonnage (DWT)	Assumed Boarding Speed (M/S)	Effective Kinetic Energy (KNM)	Fender Size D x L (m)
Ship Tonnage (DWT)	Assumed Boarding Speed (M/S)	Effective Kinetic Energy (KNM)	Fender Size D x L (m)
200000	0.15	1890	3.3 x 6.5
150000	0.15	1417	3.3 x 6.5
100000	0.15	945	3.0 x 5.0
85000	0.17	1031	3.0 x 6.0
50000	0.18	680	2.5 x 5.5
40000	0.20	672	2.5 x 5.5
30000	0.22	609	2.5 x 4.0
20000	0.25	525	2.5 x 4.0
15000	0.26	425	2.5 x 4.0
10000	0.28	329	2.0 x 4.0
5000	0.33	228	2.0 x 3.5

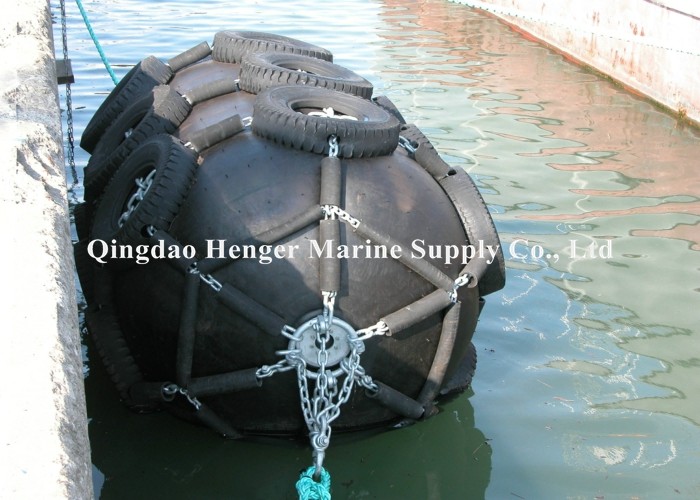

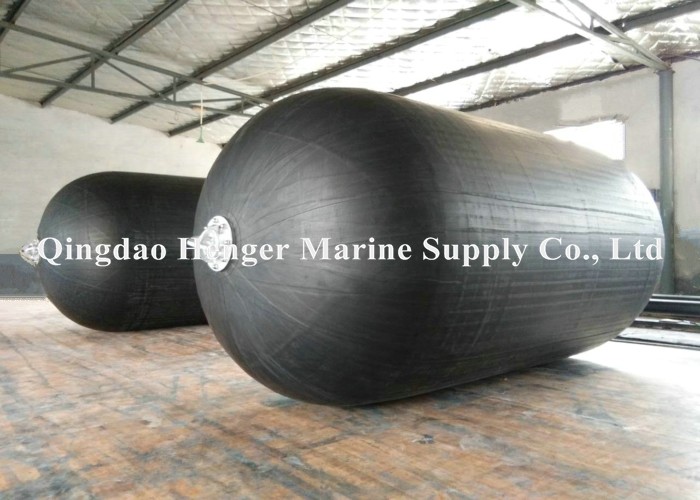

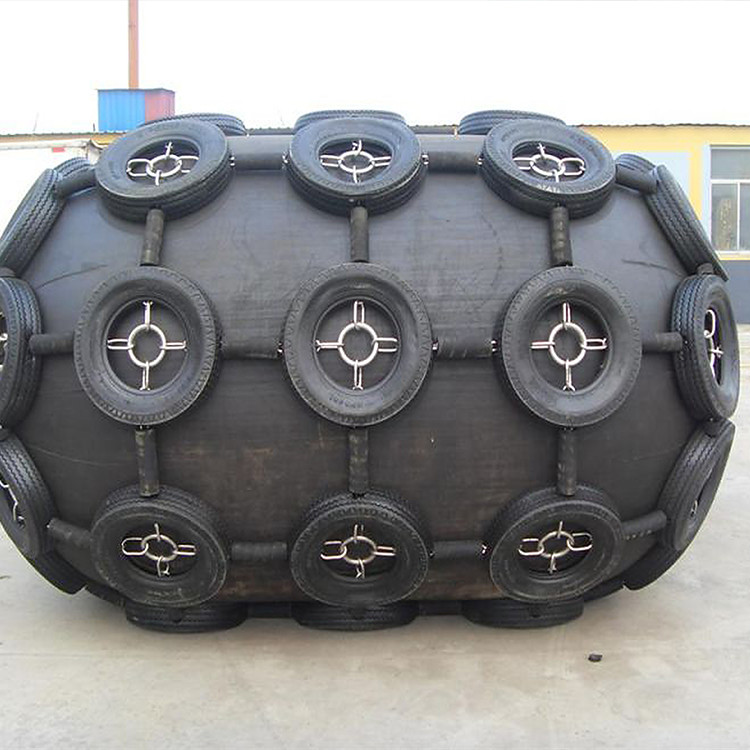

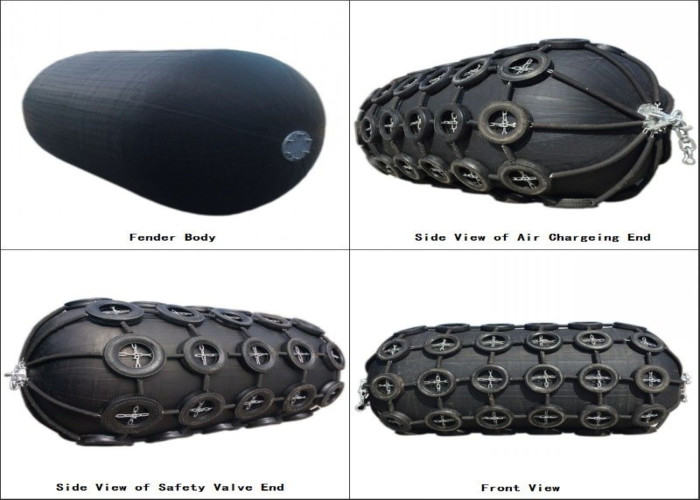

3. Product Show

80kPa Marine Boat Fenders Boat Rubber Fender Black Color With CCS Certificate

4. Warranty

Qingdao Henger Shipping Supplies Co., Ltd provides following services to all customers.

24 hours instant online technical consultation and support.
24 months warranty period(without any artificial damage) and free repairing service within warranty period.
lifetime repairing service.
