Foam Filled Fender
Foam Filled Fender, EVA Solid Fender Applied To Harbour, Offshore,STS And STD Operation.
Foam filled fender,also called EVA solid fender, is a new type fender using light weight high elasticity foam as cushion medium, widely applied to harbour, offshore,STS and STD operation.
Henger Foam Filled Fender is made of environmental protection material and high elasticity polymeric material. Long service life and high economic value of this product is achieved by the high quality material with performance of high strength, high elasticity, high adhesion, anti-leakage,and aging resistance.
1.Common Styles Of Foam Fenders

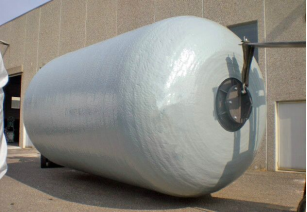

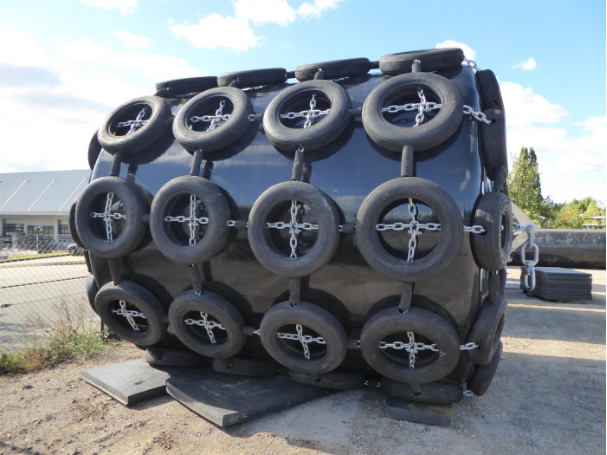

Tyre Sheath Type Gray Cylinder Type

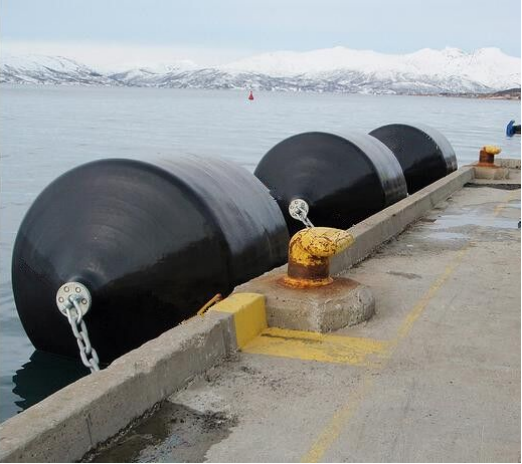

Cylindrical Type Raised At Both Ends Type
2.Floating Foam Filled Fenderdesigning of the whole machine

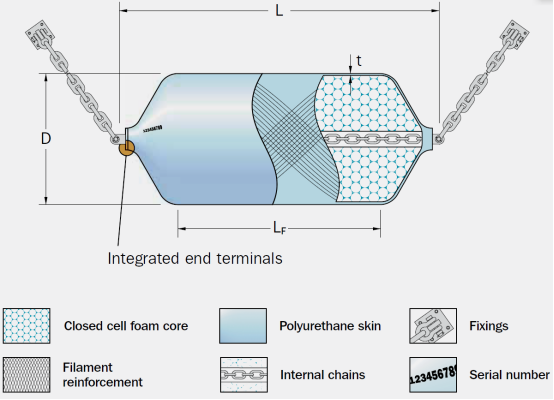

Type II Sling Type

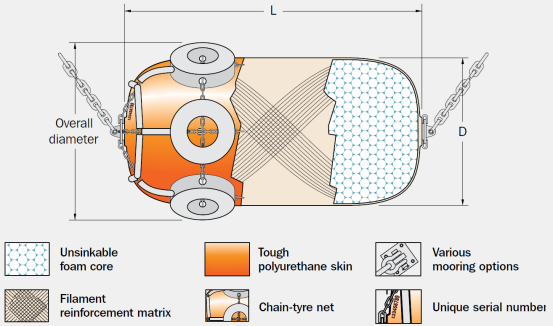

Type I Fender With Tyre-chain Protective Sleeve
3.Advantages of The Floating Foam Filled Fenders:
EVA foam has fire resistance Shock absorption and buffering
More durable
High energy absorption and low reaction force
Suitable for:
Ship collision avoidance
Dock collision avoidance
No need to spend too much time and energy
Just need to check regularly for obvious damage
Longer life than inflatable fender

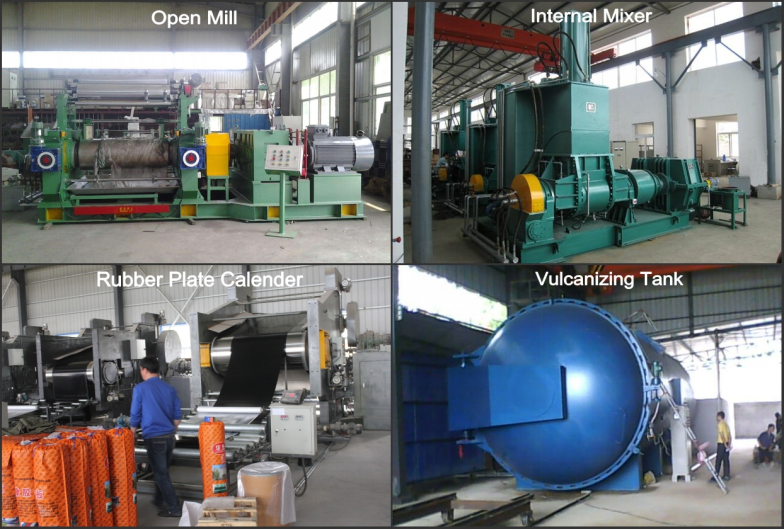

4.Fender production workshopFender production workshop
Use large precision machines for production and processing.More precise and save labor costProduce more perfect products for customers

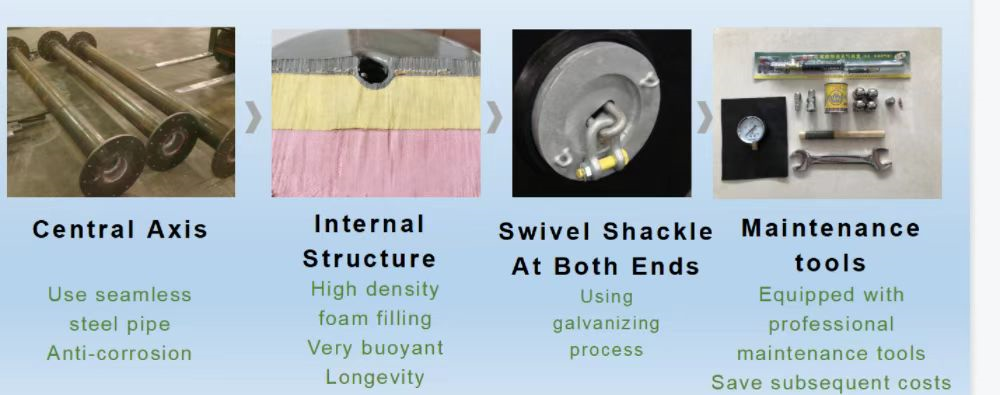

4.Details Of Our Products

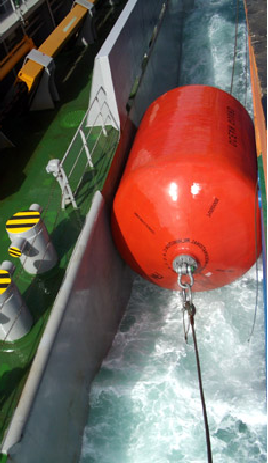

5.Fender production workshopFender productionApplication:
6.Fender Production Techinical Parameter
| Item Size(D×L)mm | D (mm) | L (mm) | Compression Value60% | Reference Weight (kg) |
| Counter Force(KN) | Energy Absorption (KJ) |
| Ø 500×1000L | 500 | 1000 | 71 | 8 | 34 |
| Ø 600×1000L | 600 | 1000 | 86 | 12 | 45 |
| Ø 700×1500L | 700 | 1500 | 161 | 27 | 101 |
| Ø 1000×1500L | 1000 | 1500 | 205 | 49 | 206 |
| Ø 1000×2000L | 1000 | 2000 | 274 | 64 | 275 |
| Ø 1200×2000L | 1200 | 2000 | 337 | 93 | 405 |
| Ø 1200×2400L | 1200 | 2400 | 390 | 110 | 475 |
| Ø 1350×2500L | 1350 | 2500 | 463 | 145 | 626 |
| Ø 1500×3000L | 1500 | 3000 | 624 | 216 | 927 |
| Ø 1700×3000L | 1700 | 3000 | 696 | 273 | 1191 |
| Ø 2000×3500L | 2000 | 3500 | 990 | 456 | 1923 |
| Ø 2000×4000L | 2000 | 4000 | 1110 | 505 | 2298 |
| Ø 2200×4500L | 2200 | 4500 | 1396 | 679 | 2992 |
| Ø 2500×4000L | 2500 | 4000 | 1386 | 781 | 3434 |
| Ø 2500×5000L | 2500 | 5000 | 1750 | 985 | 4272 |
| Ø 3000×5000L | 3000 | 5000 | 2050 | 1410 | 6411 |
| Ø 3000×6000L | 3000 | 6000 | 2460 | 1695 | 7293 |
| Ø 3300×6500L | 3300 | 6500 | 2950 | 2245 | 8335 |
| Ø 4500×9000L | 4500 | 9000 | 19650 | 7860 | 21460 |
7.Company profile
Lies in Qingdao, a beautiful coastal city. Qingdao Henger Shipping Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as pneumatic rubber fenders, foam filled fenders, marine rubber airbags, navigation mark, marine buoys, highway safety roller barrier. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.
